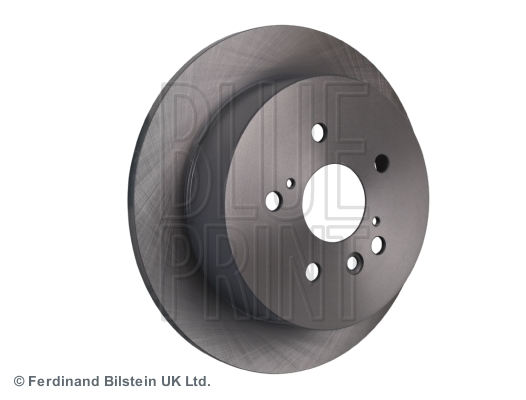

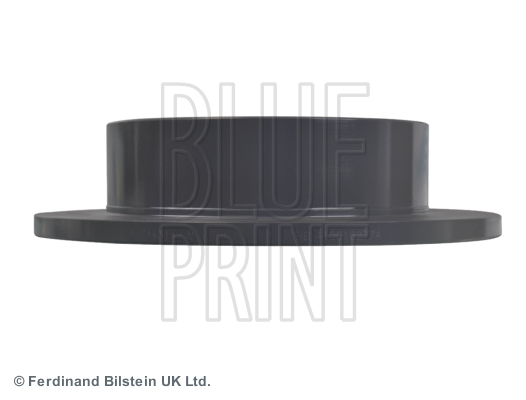

BLUE PRINT ADT343147 Brake Disc

Article number: ADT343147

EAN: 5050063608229

Description

Bolt Hole Circle Ø [mm]:	114
Brake Disc Thickness [mm]:	12
Brake Disc Type:	solid
Centering Diameter [mm]:	62
Fitting Position:	Rear
Inner Diameter [mm]:	190
Minimum thickness [mm]:	10,5
Number of mounting bores:	1
Outer Diameter [mm]:	291
Rim Hole Number:	5
Surface:	Coated
Thickness [mm]:	69
Weight [kg]:	5,850
max. brake drum reboring dimension [mm]:	191
Item number:	ADT343147
Manufacturer:	BLUE PRINT
Our price:	€39.08
EAN number:	5050063608229

Trade numbers: BLUE PRINT ADT343147

In stock

€39.08

price incl. 19% VAT
excl. delivery costs

Safety and product information

Vehicle compatibility

TOYOTA

ALPHARD I (_H1_) (04.2003 - 04.2008)

2.4 (ANH10W), 09.2003 - 04.2008, 2362 ccm, 159 hp

2.4 4WD (ANH15W), 09.2003 - 04.2008, 2362 ccm, 159 hp

2.4 Hybrid (ATH10W), 09.2003 - 04.2008, 2362 ccm, 131 hp

2.4 Hybrid 4WD (ATH10W), 09.2003 - 04.2008, 2362 ccm, 159 hp

3.0 (MNH10), 04.2003 - 04.2008, 2995 ccm, 220 hp

3.0 4WD (MNH15W), 04.2003 - 04.2008, 2995 ccm, 220 hp

AVENSIS VERSO (_M2_) (05.2001 - 12.2011)

2.0 D (CLM20_, CLM20R), 08.2001 - 08.2005, 1995 ccm, 116 hp

2.0 VVT-i (ACM20R), 08.2001 - 11.2009, 1998 ccm, 150 hp

2.4 VVT-i (ACM21_, ACM21R), 05.2001 - 12.2011, 2362 ccm, 160 hp

2.4 VVT-i (ACM21), 08.2001 - 08.2007, 2362 ccm, 156 hp

2.4 VVT-i 4WD (ACM26_, ACM26W), 05.2001 - 12.2010, 2362 ccm, 160 hp

ISIS (_M1_) (07.2004 - 09.2025)

1.8 VVTi 4WD (ZGM15), 09.2012 - 12.2017, 1798 ccm, 131 hp

1.8 VVTi 4WD (ZGM15G), 04.2007 - 08.2014, 1798 ccm, 133 hp

2.0 VVTi (ANM10G), 07.2004 - 08.2009, 1998 ccm, 155 hp

2.0 VVTi (ZGM11W, ZGM11G), 06.2012 - 09.2025, 1987 ccm, 152 hp

2.0 VVTi (ZGM11W), 09.2009 - 08.2014, 1987 ccm, 158 hp

2.0 VVTi 4WD (ANM15G), 07.2004 - 08.2014, 1998 ccm, 155 hp

PREVIA II (_R3_) (02.2000 - 02.2006)

2.0 D-4D (CLR30_, CLR30R), 03.2001 - 01.2006, 1995 ccm, 116 hp

2.4 (ACR30), 02.2000 - 01.2006, 2362 ccm, 170 hp

2.4 (ACR30W), 02.2000 - 01.2006, 2362 ccm, 160 hp

2.4 16V (ACR30), 02.2000 - 02.2006, 2362 ccm, 156 hp

2.4 4WD (ACR30), 02.2000 - 01.2006, 2362 ccm, 170 hp

2.4 4WD (ACR40W), 02.2000 - 01.2006, 2362 ccm, 160 hp

2.4 Hybrid 4WD (AHR10W), 07.2002 - 12.2005, 2362 ccm, 131 hp

3.0 (MCR30W), 08.2000 - 12.2005, 2995 ccm, 220 hp

3.0 4WD (MCR40W), 02.2000 - 12.2005, 2995 ccm, 220 hp

SIENNA (_L2_) (01.2003 - 12.2010)

3.3 (MCL20_, MCL23_, MCL20L, MCL23L), 01.2003 - 12.2006, 3311 ccm, 230 hp

3.3 4WD (MCL25_), 01.2003 - 11.2009, 3311 ccm, 230 hp

3.5 (GSL20_), 10.2006 - 12.2010, 3456 ccm, 269 hp

3.5 V6 4WD (GSL25_), 01.2007 - 03.2010, 3456 ccm, 269 hp

ОЕ number

OE reference number(s) comparable with the original spare part number:

OE 4243108030 - TOYOTA OE 4243108040 - TOYOTA OE 4243128090 - TOYOTA OE 4243128091 - TOYOTA OE 4243128120 - TOYOTA OE 4243144030 - TOYOTA

Please note that a final compatibility check is only possible using the OEN (Original Equipment Number). The description of our products contains only their technical specifications and cannot guarantee their compatibility with a particular vehicle. Please check the OEN listed in the product description before placing your order.
