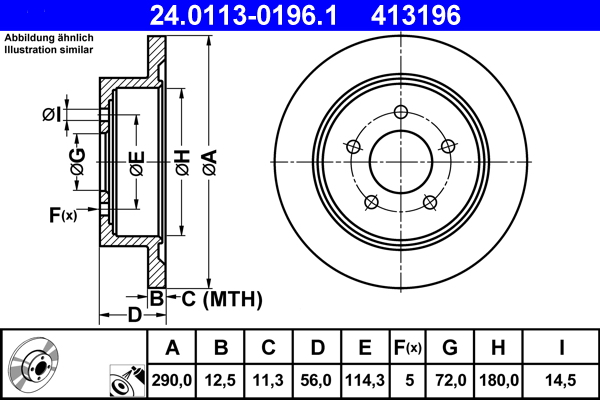

ATE 24.0113-0196.1 Brake Disc

Article number: 24.0113-0196.1

EAN: 4006633205962

Description

Bolt Hole Circle Ø [mm]:	114,3
Bore Diameter [mm]:	14,5
Brake Disc Thickness [mm]:	12,5
Brake Disc Type:	solid
Centering Diameter [mm]:	72,0
Height [mm]:	56,0
Inner Diameter [mm]:	180,0
Minimum thickness [mm]:	11,3
Number of Holes:	5
Outer Diameter [mm]:	290,0
Surface:	Coated
Test Mark:	E1 90R-02C0248/0970
Item number:	24.0113-0196.1
Manufacturer:	ATE
Our price:	€61.84
EAN number:	4006633205962

Trade numbers: ATE-413196

Only 4 left in stock

€61.84

price incl. 19% VAT
excl. delivery costs

Safety and product information

Vehicle compatibility

CHRYSLER

VOYAGER / GRAND VOYAGER III (GS_, NS_) (01.1992 - 03.2001)

2.0 i, 01.1995 - 03.2001, 1995 ccm, 133 hp

2.4 AWD, 02.1997 - 03.2001, 2429 ccm, 151 hp

2.4 i, 01.1995 - 03.2001, 2429 ccm, 151 hp

2.5 TD, 01.1995 - 03.2001, 2499 ccm, 116 hp

2.5 TDiC AWD, 10.1995 - 03.2001, 2499 ccm, 116 hp

3.0, 01.1995 - 03.2001, 2972 ccm, 152 hp

3.3 i, 01.1995 - 03.2001, 3301 ccm, 158 hp

3.8 i AWD, 01.1995 - 03.2001, 3778 ccm, 178 hp

3.8 i AWD, 01.1995 - 03.2001, 3778 ccm, 166 hp

VOYAGER / GRAND VOYAGER IV (RG) (02.2000 - 02.2008)

2.8 CRD, 04.2004 - 02.2008, 2777 ccm, 150 hp

VOYAGER IV (RG, RS) (09.1999 - 12.2008)

2.4, 02.2000 - 12.2008, 2429 ccm, 147 hp

2.4, 04.2003 - 12.2007, 2429 ccm, 151 hp

2.5 CRD, 02.2000 - 12.2008, 2499 ccm, 141 hp

2.5 CRD, 08.2005 - 12.2008, 2499 ccm, 120 hp

2.8 CRD, 06.2004 - 12.2008, 2777 ccm, 150 hp

3.3, 02.2000 - 12.2008, 3301 ccm, 174 hp

3.3, 10.2000 - 09.2002, 3301 ccm, 178 hp

3.3 AWD, 02.2000 - 12.2008, 3301 ccm, 174 hp

3.8, 02.2000 - 12.2008, 3778 ccm, 218 hp

3.8 AWD, 02.2000 - 12.2008, 3778 ccm, 218 hp

ОЕ number

OE reference number(s) comparable with the original spare part number:

OE 04721023 - CHRYSLER OE 04721023AF - CHRYSLER OE 04721023AG - CHRYSLER OE 4721023 - CHRYSLER OE 4721023AF - CHRYSLER OE 4721023AG - CHRYSLER

Please note that a final compatibility check is only possible using the OEN (Original Equipment Number). The description of our products contains only their technical specifications and cannot guarantee their compatibility with a particular vehicle. Please check the OEN listed in the product description before placing your order.
